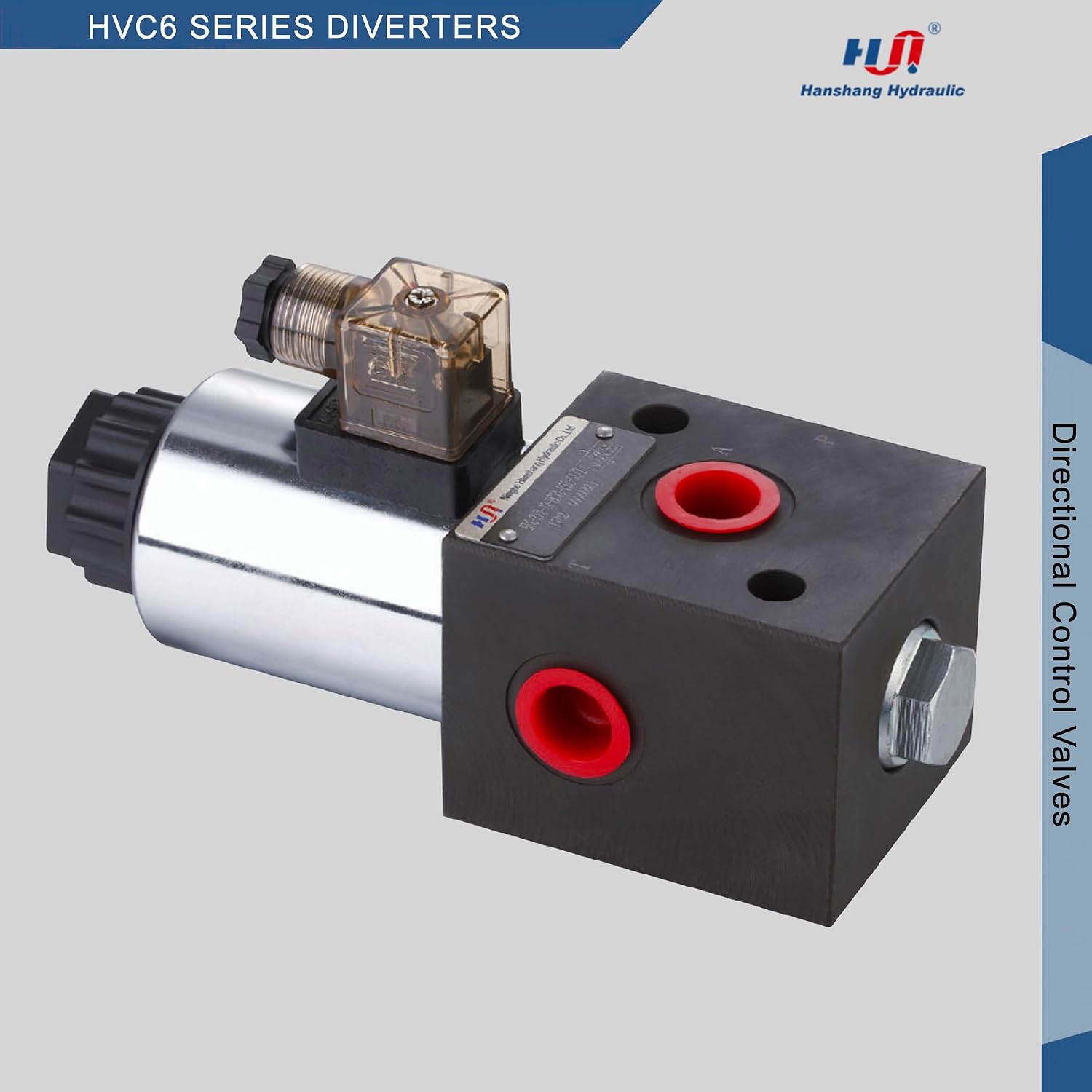

Hydraulic Solenoid Selector Diverter Valve for Directional Spool Flow Control (SAE 6, 12V DC)
$119.87
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.en.milicicdent.hr
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$119.87
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.en.milicicdent.hr
Free 30-day returns Details
Product details
| Management number | 222649890 | Release Date | 2026/05/04 | List Price | $47.95 | Model Number | 222649890 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- This solenoid valve enables you to effortlessly integrate an additional hydraulic function into your machinery
- Threaded connection: SAE 6 or SAE 8
- Max flow rate ( L/min ): 50 L/min
- Max operating pressure(MPa): 25 MPa
- Valve body ( material ) surface treatment: ( casting ) phosphating surtace
- Oil cleanliness: NAS1638 class 9 and IS04406 class 20/18/15
- Voltage: DC 12V or DC 24V coil continuous duty solenoid with DIN 43650 connector
| UPC | 811129034155 |
|---|---|
| Size | SAE 6, 12V DC |
| Set Name | Single |
| Brand Name | Hanshang Hydraulic |
| Unit Count | 1.0 Count |
| Valve Type | hydraulic diverter valve |
| Thread Size | SAE 6 or SAE 8 |
| Thread Type | SAE |
| Manufacturer | Hanshang Hydraulic |
| Model Number | HVC6-10-SAE6-8 |
| Material Type | Steel |
| Connector Type | DIN 43650 |
| Exterior Finish | Phosphating Surtace |
| Item Dimensions | 5.5 x 2.5 x 2.5 inches |
| Number of Ports | 3 |
| Maximum Pressure | 25 |
| Specification Met | NAS1638, ISO4406 |
| Included Components | Coil, DIN 43650 connector, Selonoid Diverter Valve |
| Inlet Connection Type | SAE |
| Outlet Connection Size | 0.38 Inches |
| Outlet Connection Type | SAE |
